Series Blauberg Centro-Jet Dual

Name: Blauberg Centro-Jet Dual
Brand: VENTS
Availability: InStock

The Centro-Jet Dual is a new, ergonomic, efficient version of centrifugal fans for use in confined spaces with low ceiling heights. Suitable for mining pollutants and CO in car parks, access tunnels, exits routes and shopping malls.

Features

The fans generate a high-speed and high-pressure directed.
The supply of a template with a special design for fast mounting and the option of installing the fan in the best air exhaust direction is an important benefit that saves time in installations.
The fan has a sound insulation of mineral wool.
The motor ingress protection rating is IP44 or IP55.

The motors are designed for mains voltages of 120 V, 230 V and 400 V and a frequency of 50 Hz or 60 Hz.
Centro-Jet Dual fans are designed for horizontal ceiling mounting and fixation by means of the supplied fixing brackets attached to the fan casing.
Maximum temperature of air to be carried -4…+140 °F.

Impulse thrust

	Centro-Jet Dual 12N AC	Centro-Jet Dual 12N AC 60Hz	Centro-Jet Dual 12N AC 120/60Hz	Centro-Jet Dual 12N EC	Centro-Jet Dual 12N EC 120/60Hz
Speed [rpm]	2650	2850	3200	2800	2550
Thrust [N]	12	12	12	12	12
Air exhaust speed [ft/min]	2559.05	2559.05	2952.75	2755.90	2559.05
Air speed [ft/min]	196.85	196.85	236.22	196.85	196.85

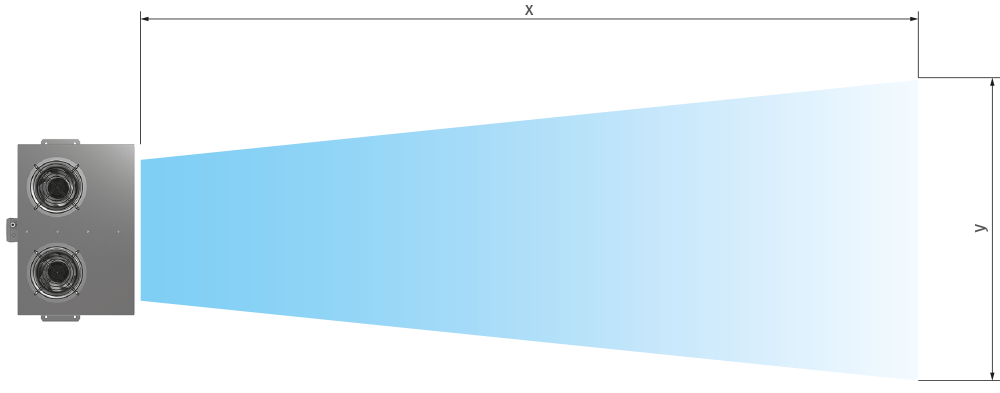

Maximum length x of blade [in]	708.6	708.6	787.40	748.03	708.6
Maximum length y of blade [in]	275.59	275.59	314.96	314.96	275.59

Lineup Blauberg Centro-Jet Dual	Phases	Rated power, W	Maximum airflow, CFM
Centro-Jet Dual 12N AC	1	400	1559
Centro-Jet Dual 12N AC 60Hz	1	480	1589
Centro-Jet Dual 12N AC 120/60Hz	1	500	1589
Centro-Jet Dual 12N EC	1	320	1500
Centro-Jet Dual 12N EC 120/60Hz	1	340	1500
