/ Product catalogue / Fans / Jet Fans / Centro-Jet / Centro-Jet-50N-4/6-300/2-60Hz

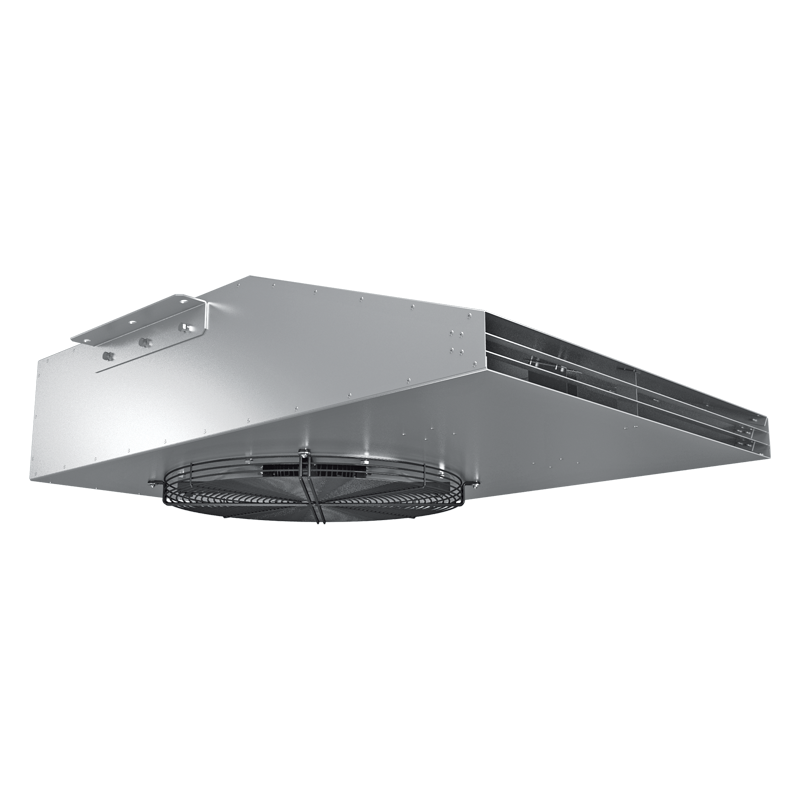

Blauberg Centro-Jet-50N-4/6-300/2-60Hz

Blauberg Centro-Jet-50N-4/6-300/2-60Hz - Induction centrifugal fans Centro-Jet are designed for operation in general ventilation and smoke extraction systems of underground and semi-open parking facilities. The fans are rated for fire resistance classes F300 (572 °F/120 min) or F400 (752 °F/120 min).
Series: Centro-Jet
Induction centrifugal fans Centro-Jet are designed for operation in general ventilation and smoke extraction systems of underground and semi-open parking facilities. The fans are rated for fire resistance classes F300 (572 °F/120 min) or F400 (752 °F/120 min).
  • Sound pressure level LpA at 3 m: 72/59 dB(A)
  • Casing material: Coated steel
Unit of measurement Centro-Jet-50N-4/6-300/2-60Hz
Speed - 1 2
Phases - 3
Minimum supply voltage V 400
Maximum supply voltage V 400
Voltage V 380
Power supply frequency Hz 60
Rated power W 1500/370
Maximum airflow CFM 3767/2502
Rotation speed at 60hz - 1800/1200
Thrust N 50
Sound pressure level LpA at 3 m dB(A) 72/59
Weight lb 211.64
Transported air temperature (max) °F 131
Transported air temperature (min) °F -13
Ingress protection rating of the drive - IP55
Datasheet
Centro-Jet leaflet
295 Kb
Manual
Centro-Jet series user's manual 2026-07 (BUSA117EN-06)
2.36 Mb
Centro-Jet-50N-4/6-300/2-60Hz - image 1
184 Kb

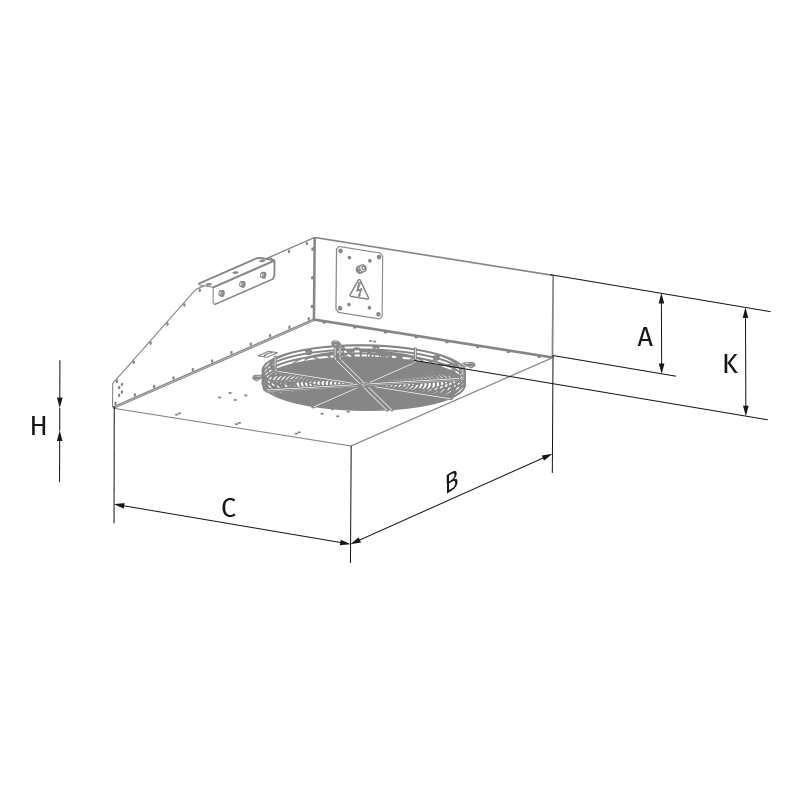

A B C H K
11.42'' 53.35'' 36.81'' 3.54'' 13.78''
